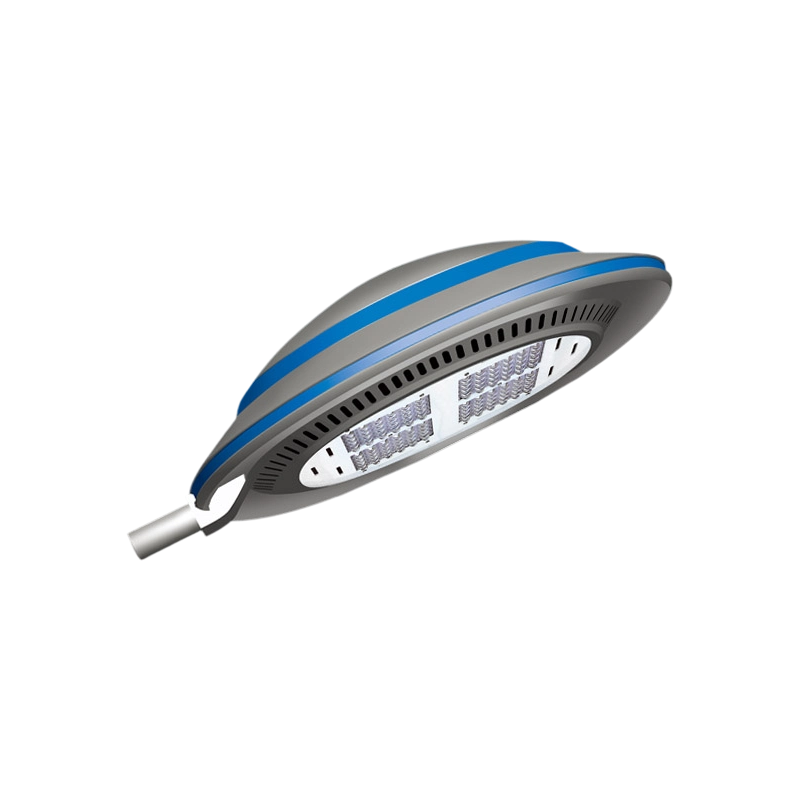

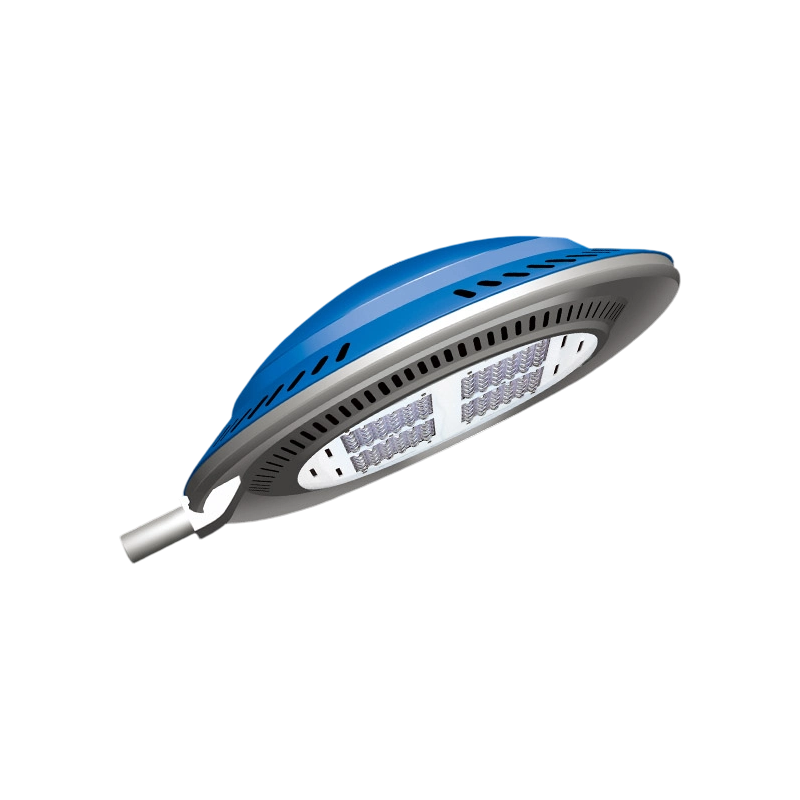

High-Performance Streamlined LED Roadway Lighting System

The high-performance streamlined LED roadway lighting system is engineered specifically for municipal infrastructure and high-speed traffic networks, delivering superior reliability in demanding outdoor environments through its aerodynamic design and precise thermal conduction architecture. This system achieves significant breakthroughs in lighting efficiency while enhancing operational stability under extreme climatic conditions through modular heat dissipation technology.

Technical Specifications
Input Voltage Range: Supports a wide voltage range of AC85V to 260V with a frequency range of 50Hz to 60Hz, effectively managing fluctuations in urban power grids.

Efficiency: Rated power ranges from 30W to 120W, with an initial luminous flux of 3300Lm to 13200Lm, meeting illumination design requirements for various road classes.

Optical Conversion Efficiency: The total light output efficiency exceeds 90%, with LED luminous efficiency greater than 100 lm/W, ensuring maximum energy utilization.

Environmental Adaptability: Rated IP65 for dust and water protection, with a Grade 12 wind resistance index, suitable for operating temperatures between -40°C and +50°C.

Durability: The lamp life exceeds 50,000 hours, significantly reducing maintenance frequency and long-term labor costs.

Core Advantages and Engineering Value
Thermal Management: By integrating aluminum alloy heat sinks with ultra-high thermal conductivity, the system rapidly dissipates heat generated by the LED source, maintaining a junction temperature below 60°C to extend core component lifespan.

Optical Design: Utilizes an advanced bat-wing light distribution curve to achieve road uniformity of over 0.7, providing large-area coverage while completely eliminating glare and dark spots to improve nighttime visibility and safety.

Color Rendering and Environmental Impact: With a Color Rendering Index (Ra) greater than 75, the system accurately restores the color of traffic signs and surroundings, enhancing recognition accuracy. The manufacturing process complies with green lighting standards, containing no mercury or harmful radiation, ensuring compatibility with urban environments and human eye health.

Aesthetic and Structural Design: The aesthetic design emphasizes compactness and harmony. Multiple color options (gray, white, black, blue, and orange) are available to satisfy various landscaping requirements, while its structure has undergone professional wind tunnel testing to ensure physical stability when mounted on high masts.
