Wholesale High-Efficiency Heat Dissipation LED Lighting Fixtures

Home / Product / LED Street Lighting / LED Luminaires / High-Efficiency Heat Dissipation LED Lighting Fixtures

High-Efficiency Heat Dissipation LED Lighting Fixtures

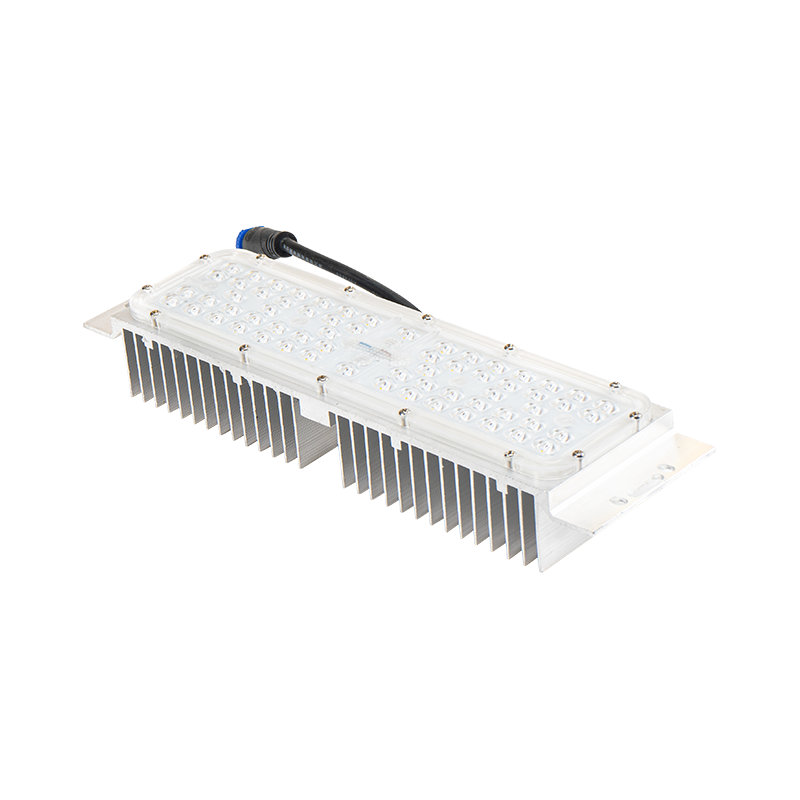

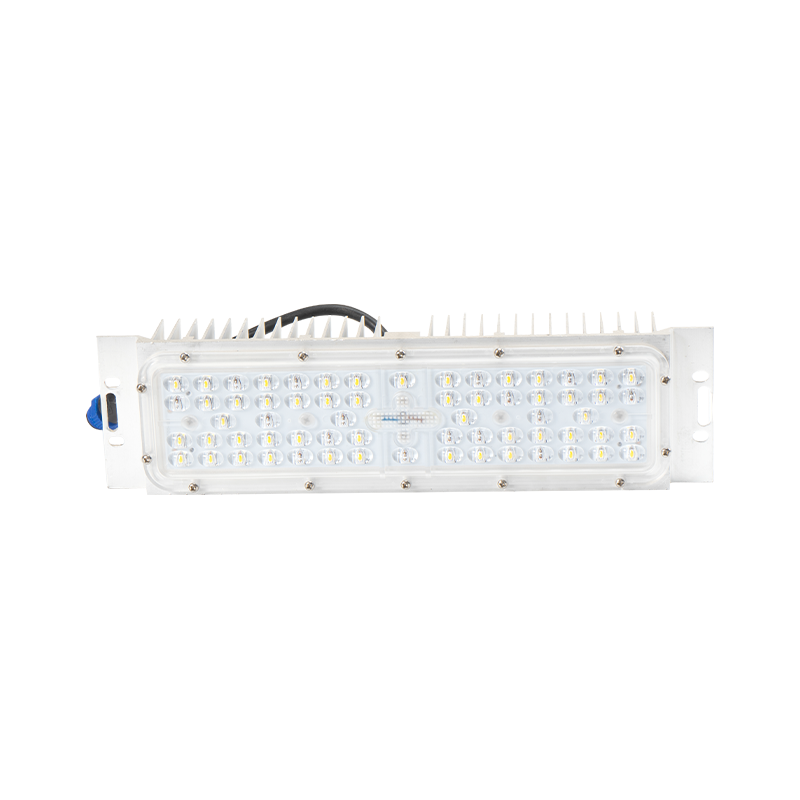

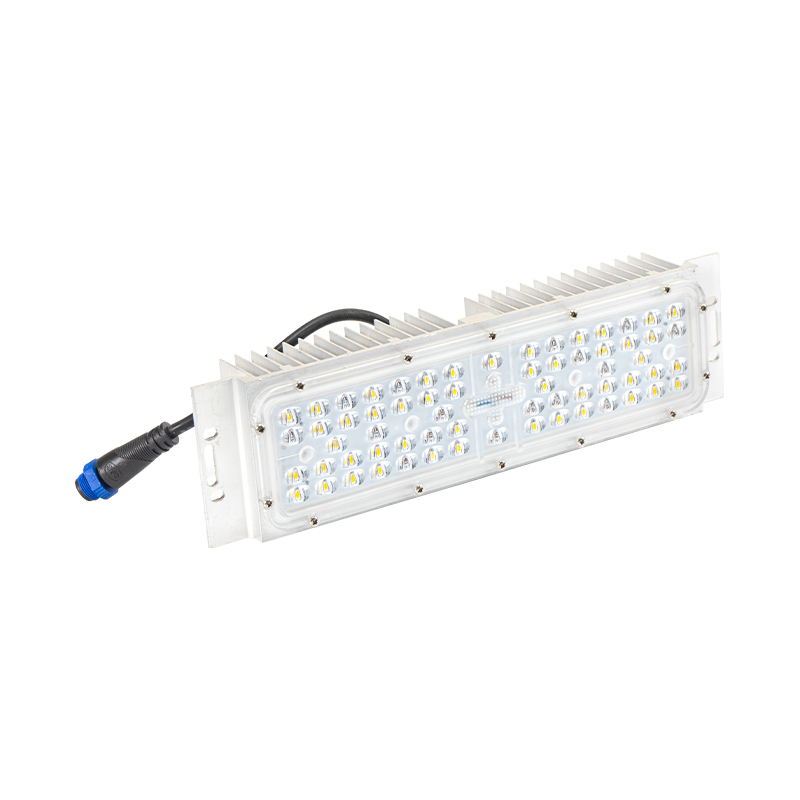

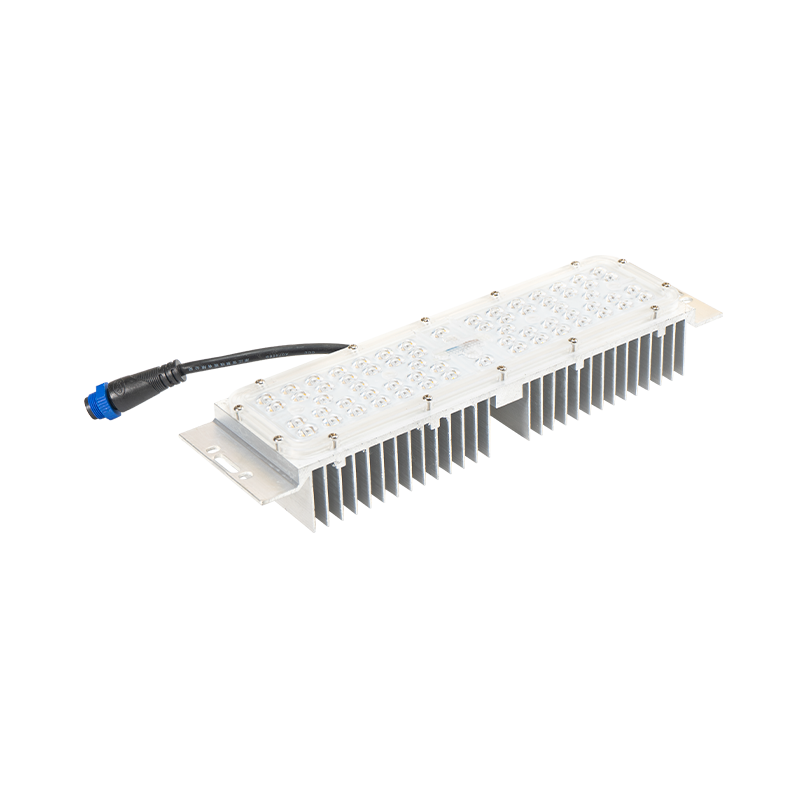

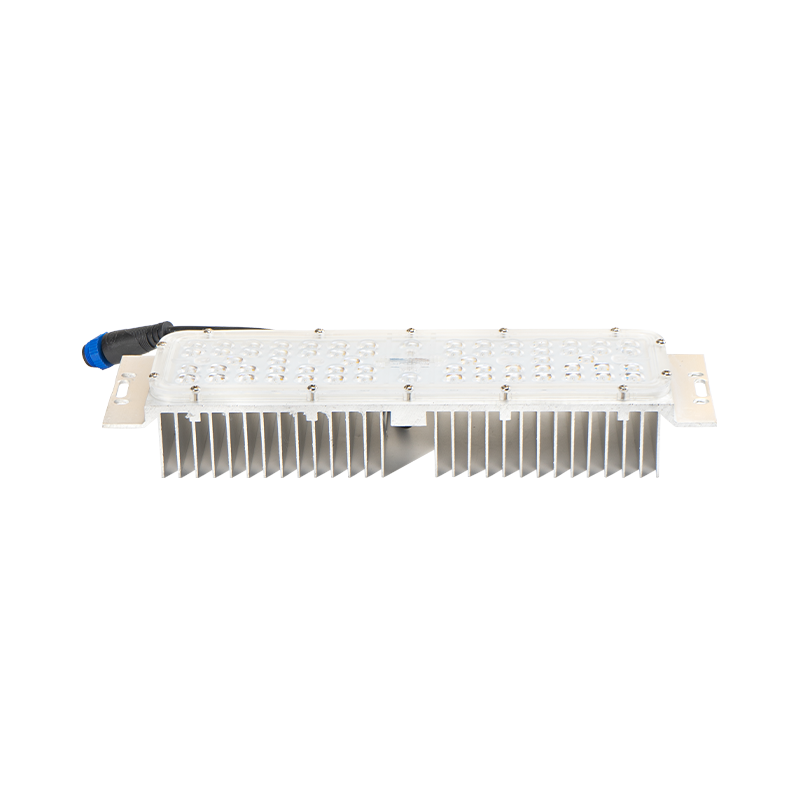

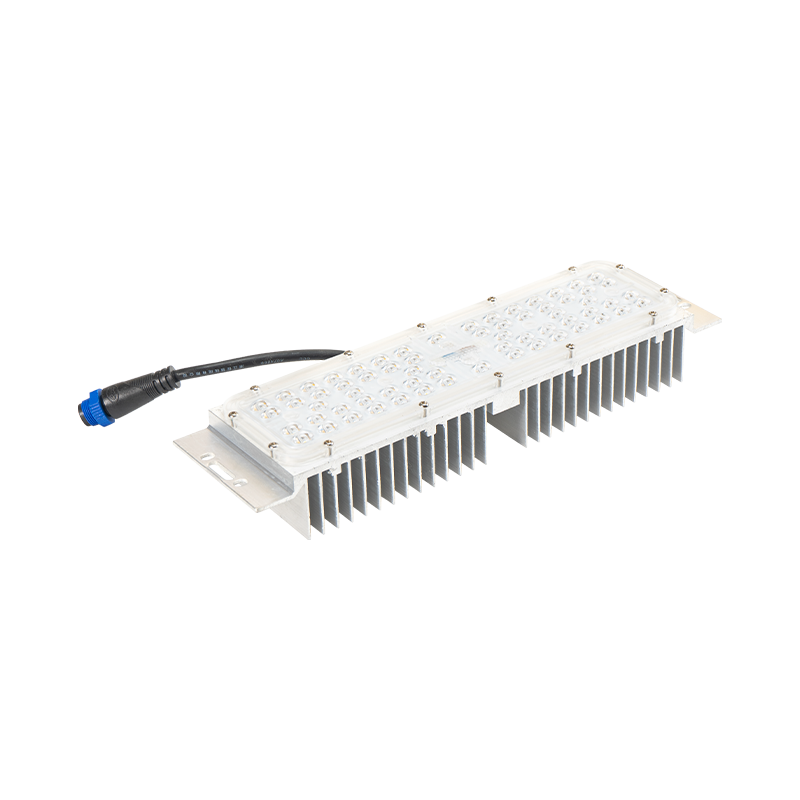

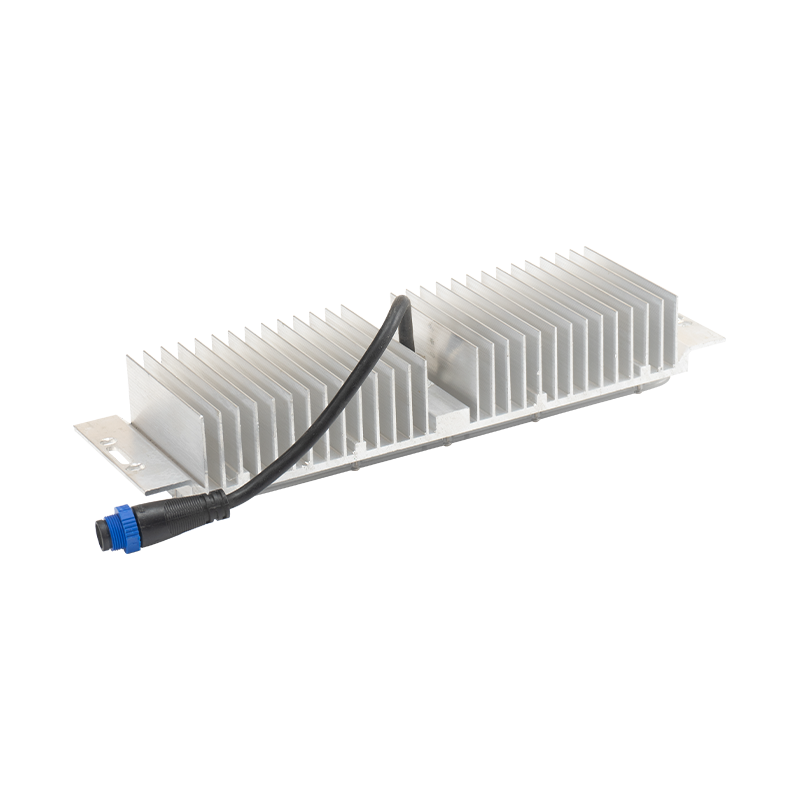

This lighting unit serves as the foundational building block for a diverse range of modular streetlights and floodlights. The module comprises a high-efficiency LED array, precision optical lenses, a thickened aluminum profile heat sink, and waterproof quick-connectors. Its heat sink features a dense finned structure that significantly maximizes the heat dissipation surface area. The module is sealed along its perimeter with a highly weather-resistant silicone gasket, ensuring that the individual module itself possesses an exceptionally high rating for water and dust ingress protection, thereby allowing for flexible integration into various fixture housings.
This product module integrates dozens of high-brightness LED beads within an extremely compact form factor. Its most distinctive feature is the interchangeability of its lenses; depending on specific project requirements, users can swap between various light distribution lenses—such as narrow, medium, or wide beams—thereby transforming a single module into a specialized light source suitable for street lighting, floodlighting, or tunnel lighting applications. The design of the quick-connectors makes on-site module replacement or upgrading as simple as plugging or unplugging a cord, significantly lowering the technical barrier and time costs associated with long-term maintenance.

PREV：Modular Luminaires with Adjustable Specifications NEXT：Industrial-Grade LED Module Luminaires with Precision Optics

Brand	Jinyuan	Application	Road
Input Voltage	AC85-265V	Light Source	LED
Operating Temperature	-35~65℃	Lamp Material	Aluminum Alloy
Protection Rating	IP65	Lamp Luminous Efficacy	140Lm/w
Color Temperature	3000K-6000K	Color Rendering Index (Ra)	70
Dimming Support	DC 0-10V / DALI	Warranty Period	5 Years

PRODUCTION EQUIPMENT
HOW WILL YOU BE GUARANTEED BY PREMIUM QUALITY AT COMPETITIVE PRICES?
Material option: Q235B/Q345B/S275JR/S355JR/Q460/A36/A572/GR56/GR50 and etc.Extensive stock of materials ensures you never face delays, allowing for rapid production and guarantee a high-quality foundation for your projects.
With our precise, consistent CNC bending,you can count on enhanced structural integrity and fewer post-production adjustments
With 0.01mm cutting accuracy, you get exact dimensions and clean edges,ensuring a perfect fit and superior quality for your projects.
You will benefit from faster production cycles and stringent quality control, enhancing your product's anti-corrosion lifespan.
Our team of certified welders with many years of welding experience can guarantee both quality and speed. This ensures that any large-scale project of yours will not only reach the first-class standard but also be completed on time.
Our automated lines not only elevate your product quality but also reduce your costs, all while being environmentally sustainable

YOUR SATISFACTION, OUR SERVICE:
From consultation to project completion, we’re dedicated to providing you with seamless, personalized service that ensures your project’s success and your complete satisfaction.

CAD Design	3D Product Simulation Design

3D Scene Simulation Design	Specification & Color Customization

Mechanical Calculation Wind&Foundation	Oversea Onsite Installation Guidance
