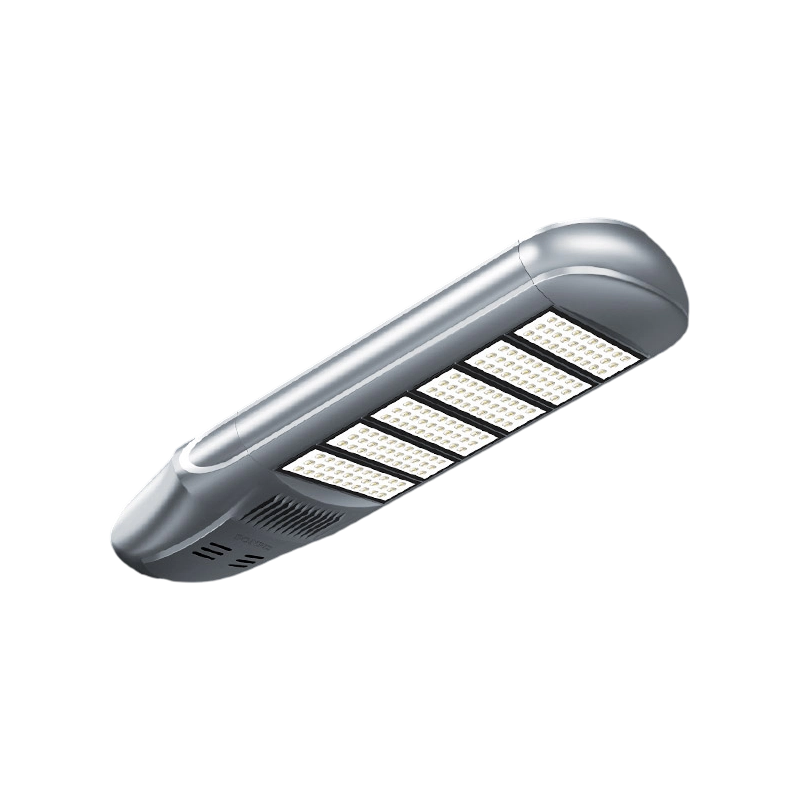

Century Light Series High-Power Modular Roadway Light

The Century Light series is engineered for wide arterial roads and high-grade highways, featuring an industry-leading modular light source matrix design that delivers high luminous flux output while significantly enhancing thermal management efficiency and maintenance accessibility. This product series supports a broad power range from 60W to 210W and, through its superior mechanical strength and advanced light distribution schemes, is widely applied in diverse urban infrastructure lighting projects.

Technical Core and Engineering Specifications
Input Voltage and Frequency Adaptation: The system is compatible with an input voltage range of AC85V to 260V at 50Hz to 60Hz, demonstrating excellent adaptability to varying power grid environments.

Power Coverage: Available in six configurations (60W, 90W, 120W, 150W, 180W, and 210W), with initial luminous flux ranging from 6600Lm to 23100Lm, precisely meeting the illumination requirements for various road classes.

Thermal Management and Operational Stability: Equipped with an aluminum alloy heat sink featuring ultra-high thermal conductivity, the design ensures the LED junction temperature is maintained below 60°C, effectively reducing lumen depreciation and extending the overall service life.

Rigorous Environmental Protection: Rated IP65 for ingress protection with a Grade 12 wind resistance index, the fixtures maintain stable, long-term operation within an operating temperature range of -40°C to +50°C.

Optical Performance and System Advantages
Precision Optical Technology: Employs a professionally developed bat-wing light distribution curve to achieve a road uniformity ratio exceeding 0.7, providing large-area coverage while completely eliminating glare and light spots, thereby ensuring clear vision for drivers.

Energy Efficiency and Sustainability: Utilizing imported high-efficiency chips and patented packaging technology, the series achieves 60% higher energy savings compared to traditional municipal lighting equipment. The manufacturing process strictly adheres to green standards, ensuring zero mercury, zero UV, and zero radiation, which safeguards human eye health and the urban ecosystem.

Color Rendering and Aesthetic Enhancement: Featuring a Color Rendering Index (Ra) greater than 75, the series accurately restores the original colors of traffic signs and road surfaces, significantly improving driving safety and the visual quality of the urban nightscape.

Customized Aesthetic Integration: Offers various color finishes, including gray, white, black, blue, and orange, allowing for flexible integration into modern architectural and urban landscape design styles.
