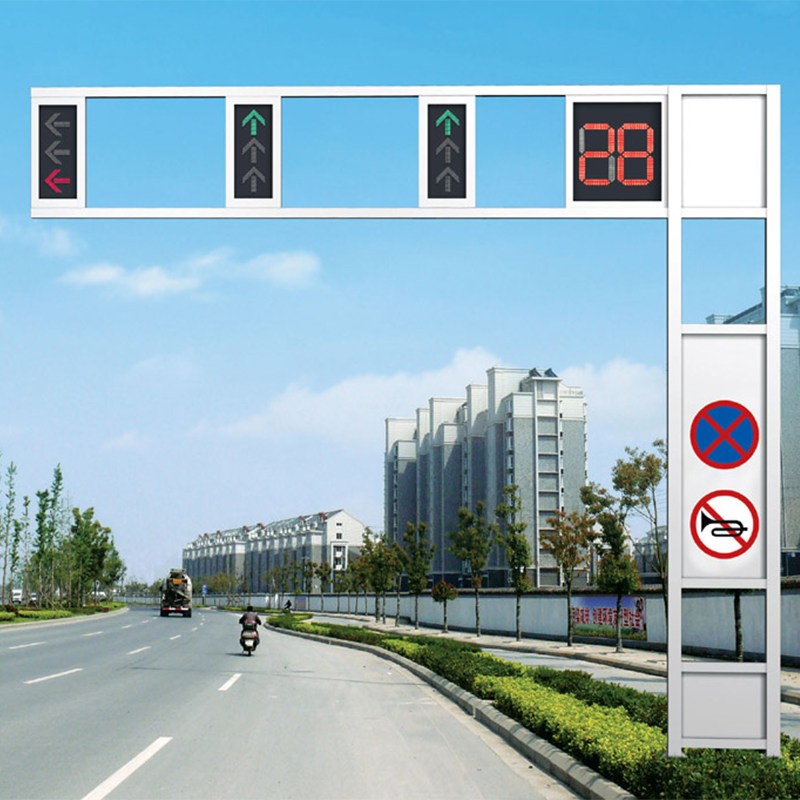

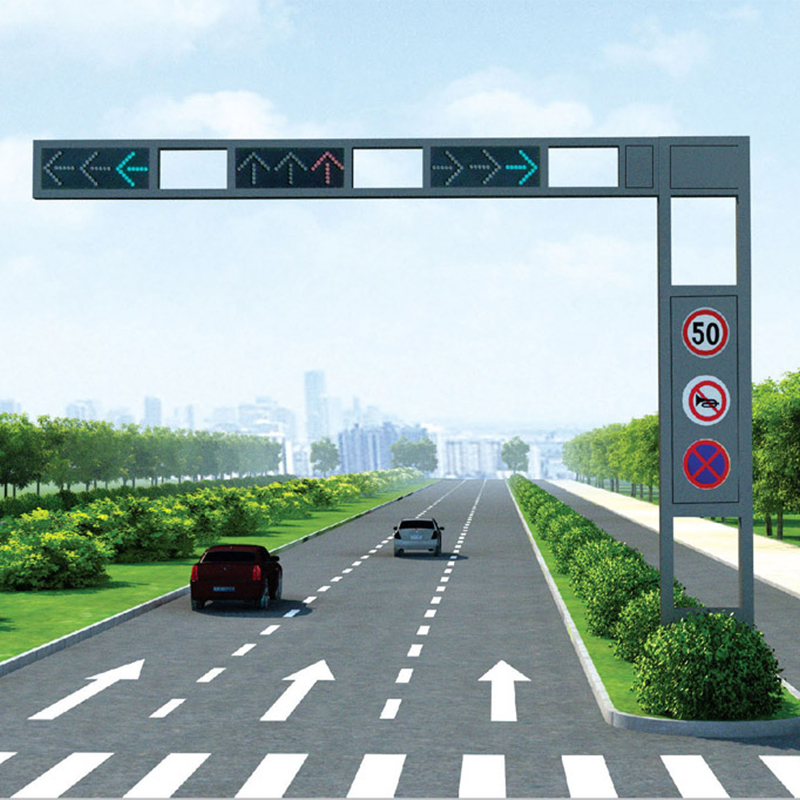

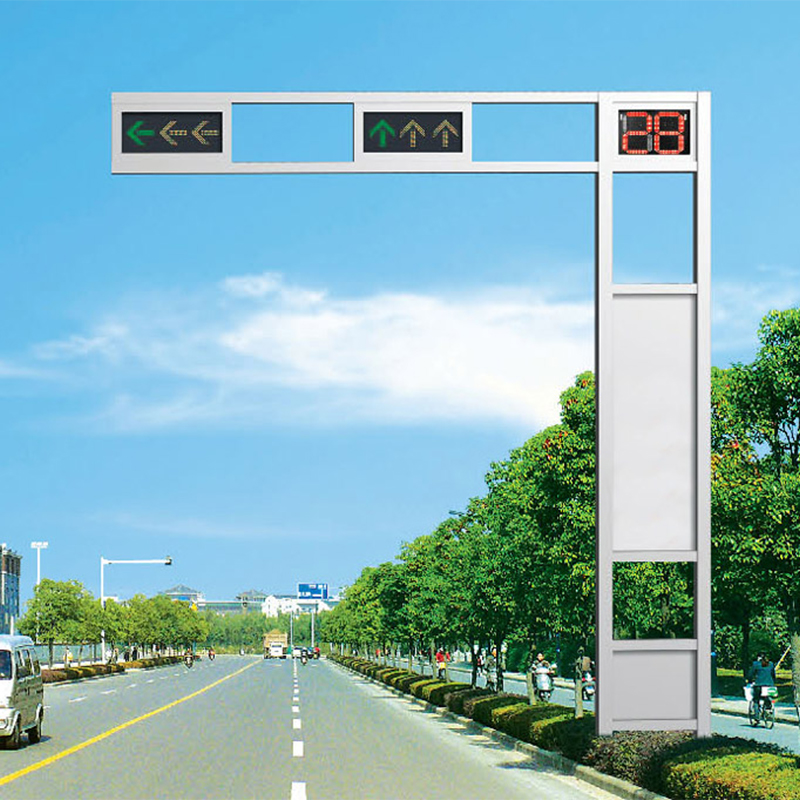

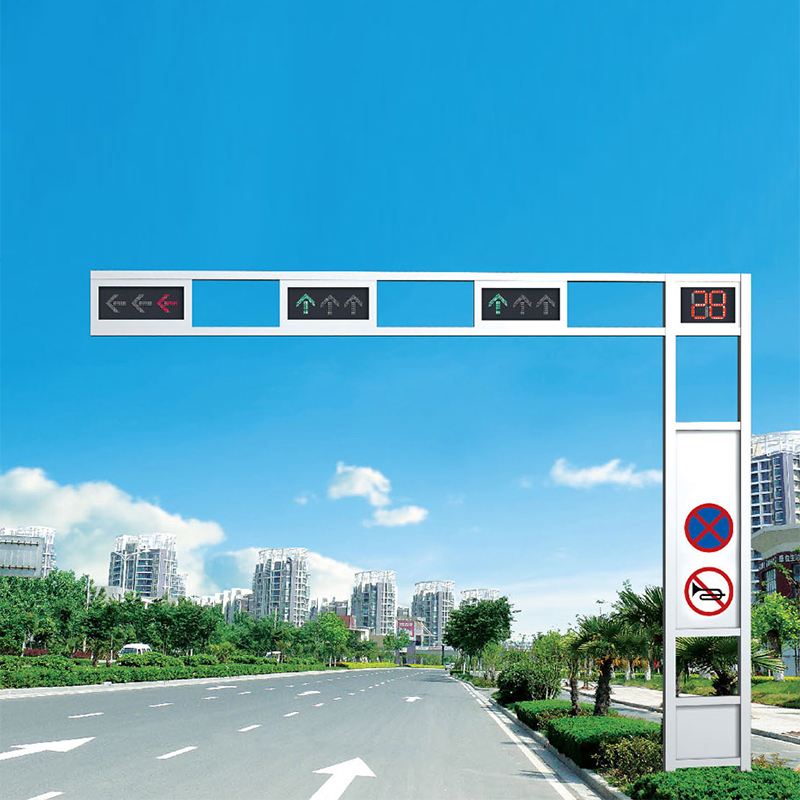

The integrated framework traffic signal light is an innovatively designed intelligent traffic light, combining modern traffic management requirements to provide efficient and stable road traffic signal control solutions. This product features an integrated framework design that consolidates all the functions of a traffic signal, offering not only a simple and aesthetically pleasing appearance but also extremely high reliability and durability. The framework structure enhances the device's wind resistance, enabling it to operate stably in various weather conditions and adapt to complex environments such as urban roads, intersections, and highways.
The traffic signal light utilizes advanced LED light sources, characterized by low power consumption and high brightness, ensuring clear and uniform signal display both during the day and at night. This ensures accurate communication of traffic instructions. Its intelligent control system can automatically adjust the signal duration based on real-time traffic flow, further improving traffic efficiency and road safety. The light is designed with high interference resistance, as well as waterproof and dustproof capabilities, allowing it to withstand harsh outdoor environments and operate reliably over long periods.
|
Main Pole Structure
|
Rectangular material structure with elegant appearance
|
|
Pole Height
|
7000–7500mm
|
|
Arm Length
|
6000mm ~ 14000mm
|
|
Main Pole Tube
|
150×250mm square tube, wall thickness 5mm ~ 10mm
|
|
Cross Arm Tube
|
100×200mm square tube, wall thickness 4mm ~ 8mm
|
|
Pole Body
|
Hot-dip galvanized, rust-free for 20 years; surface optional plastic spraying with customizable colors
|
|
Lamp Surface Diameter
|
Φ400mm or Φ500mm
|
|
Chromaticity
|
Red (620–625nm), Green (504–508nm), Yellow (590–595nm)
|
|
Operating Power Supply
|
187V ~ 253V, 50Hz
|
|
Rated Power
|
Single lamp ＜20W
|
|
Service Life of Light Source
|
＞50000 hours
|
|
Ambient Temperature
|
-40℃ ~ +80℃
|
|
Protection Class
|
IP54
|
| PRODUCTION EQUIPMENT | |
| HOW WILL YOU BE GUARANTEED BY PREMIUM QUALITY AT COMPETITIVE PRICES? | |
| Material option: Q235B/Q345B/S275JR/S355JR/Q460/A36/A572/GR56/GR50 and etc.Extensive stock of materials ensures you never face delays, allowing for rapid production and guarantee a high-quality foundation for your projects. |
 |
| With our precise, consistent CNC bending,you can count on enhanced structural integrity and fewer post-production adjustments |  |
| With 0.01mm cutting accuracy, you get exact dimensions and clean edges,ensuring a perfect fit and superior quality for your projects. |  |
| You will benefit from faster production cycles and stringent quality control, enhancing your product's anti-corrosion lifespan. |  |
| Our team of certified welders with many years of welding experience can guarantee both quality and speed. This ensures that any large-scale project of yours will not only reach the first-class standard but also be completed on time. |  |
| Our automated lines not only elevate your product quality but also reduce your costs, all while being environmentally sustainable |  |
|
YOUR SATISFACTION, OUR SERVICE:
|
|
|
From consultation to project completion, we’re dedicated to providing you with seamless, personalized service that ensures your project’s success and your complete satisfaction.
|
|
 |
 |
|
CAD Design
|
3D Product Simulation Design
|
 |
 |
|
3D Scene Simulation Design
|
Specification & Color Customization
|
 |
 |
|
Mechanical Calculation Wind&Foundation
|
Oversea Onsite Installation Guidance
|
Our company is a China Cantilever Traffic Light Suppliers and Integrated Framework Traffic Signal Light Factory.Yangzhou Jinyuan Lamps Co., Ltd, which is affiliated with Jinshang Electric Group, is one of the professional provincial large-sized production, design, and engineering companies in the industry of road illumination in China. Since established from 2002, our products, which focus on street light poles, led street light, solar street light, light fixtures, etc., are highly appreciated by customers in domestic and overseas.
