Wholesale All-in-One Monoblock Cantilevered Signaling Lamp

Home / Product / Traffic Facilities / Traffic Signal Lights / All-in-One Monoblock Cantilevered Signaling Lamp

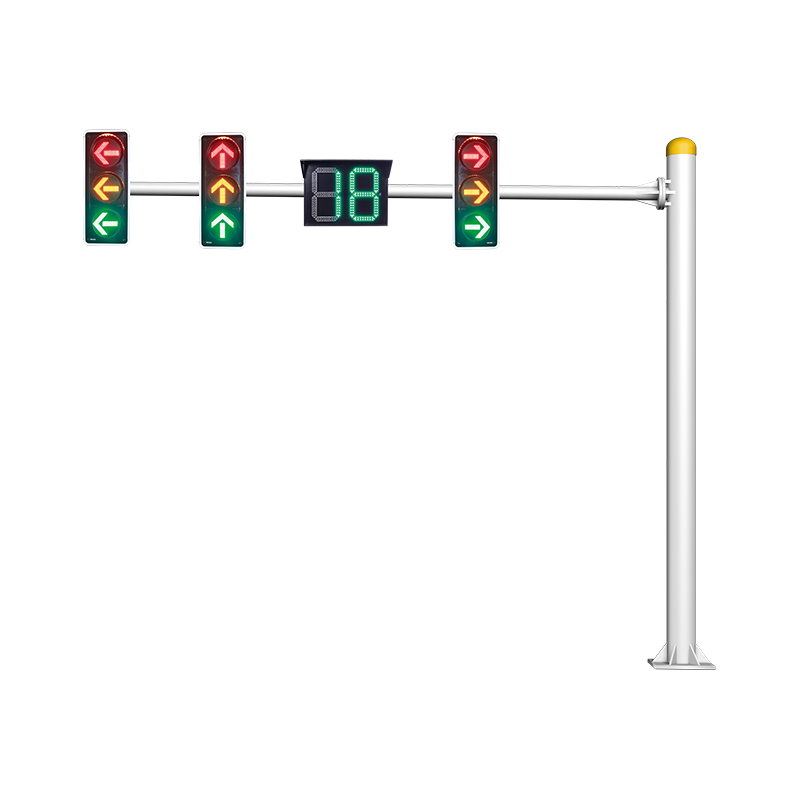

All-in-One Monoblock Cantilevered Signaling Lamp

This All-in-One Monoblock Cantilevered Signaling Lamp is designed for high-intensity traffic management and is a core component for improving road safety and intersection efficiency. The light source uses original imported ultra-high brightness LEDs, ensuring excellent visibility even under strong direct sunlight, significantly reducing the risk of traffic accidents. The lamp housing is made of one-piece die-cast aluminum or impact-resistant engineering plastic injection molding, providing strong weather resistance and long-term resistance to UV radiation and road environment vibrations.

The product is available in various specifications, including 300mm and 400mm round and square light-emitting surfaces. The modular design supports flexible horizontal or vertical cantilever mounting. All core technical parameters strictly comply with the GB14887-2011 national standard, providing reliable assurance for government, municipal, and commercial infrastructure projects. Whether it's busy city intersections, highway interchanges, or large industrial parks, this system can meet the stringent requirements for signal accuracy and structural durability.

PREV：Modular High-Intensity Integrated Traffic Signal NEXT：Integrated Framework Traffic Signal Light

Main Pole Structure	Cylindrical, elegant and attractive appearance
Pole Height	6800mm
Arm Length	5000mm～14000mm
Main Pole Wall Thickness	5mm～10mm
Cross Arm Wall Thickness	4mm～8mm
Pole Surface Treatment	Hot-dip galvanized, rust-free for 20 years (surface can be plastic sprayed with optional colors)
Lamp Surface Diameter	Φ300mm or Φ400mm
Chromaticity	Red (620-625), Green (504-508), Yellow (590-595)
Operating Power Supply	187V～253V, 50Hz
Rated Power	Single lamp ＜20W
Service Life of Light Source	＞50000 hours
Ambient Temperature	-40℃～+80℃
Protection Class	IP54

PRODUCTION EQUIPMENT
HOW WILL YOU BE GUARANTEED BY PREMIUM QUALITY AT COMPETITIVE PRICES?
Material option: Q235B/Q345B/S275JR/S355JR/Q460/A36/A572/GR56/GR50 and etc.Extensive stock of materials ensures you never face delays, allowing for rapid production and guarantee a high-quality foundation for your projects.
With our precise, consistent CNC bending,you can count on enhanced structural integrity and fewer post-production adjustments
With 0.01mm cutting accuracy, you get exact dimensions and clean edges,ensuring a perfect fit and superior quality for your projects.
You will benefit from faster production cycles and stringent quality control, enhancing your product's anti-corrosion lifespan.
Our team of certified welders with many years of welding experience can guarantee both quality and speed. This ensures that any large-scale project of yours will not only reach the first-class standard but also be completed on time.
Our automated lines not only elevate your product quality but also reduce your costs, all while being environmentally sustainable

YOUR SATISFACTION, OUR SERVICE:
From consultation to project completion, we’re dedicated to providing you with seamless, personalized service that ensures your project’s success and your complete satisfaction.

CAD Design	3D Product Simulation Design

3D Scene Simulation Design	Specification & Color Customization

Mechanical Calculation Wind&Foundation	Oversea Onsite Installation Guidance

Yangzhou Jinyuan Lamps Co.,Ltd.

Our company is a China All-in-One Monoblock Cantilevered Signaling Lamp Suppliers and All-in-One Monoblock Cantilevered Signaling Lamp Factory.Yangzhou Jinyuan Lamps Co., Ltd, which is affiliated with Jinshang Electric Group, is one of the professional provincial large-sized production, design, and engineering companies in the industry of road illumination in China. Since established from 2002, our products, which focus on street light poles, led street light, solar street light, light fixtures, etc., are highly appreciated by customers in domestic and overseas.
