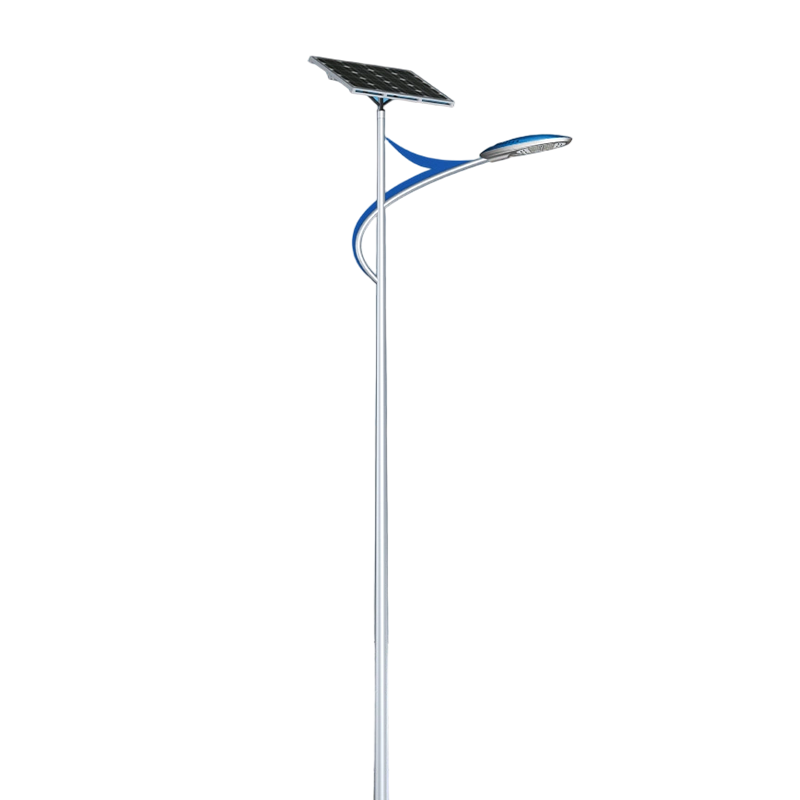

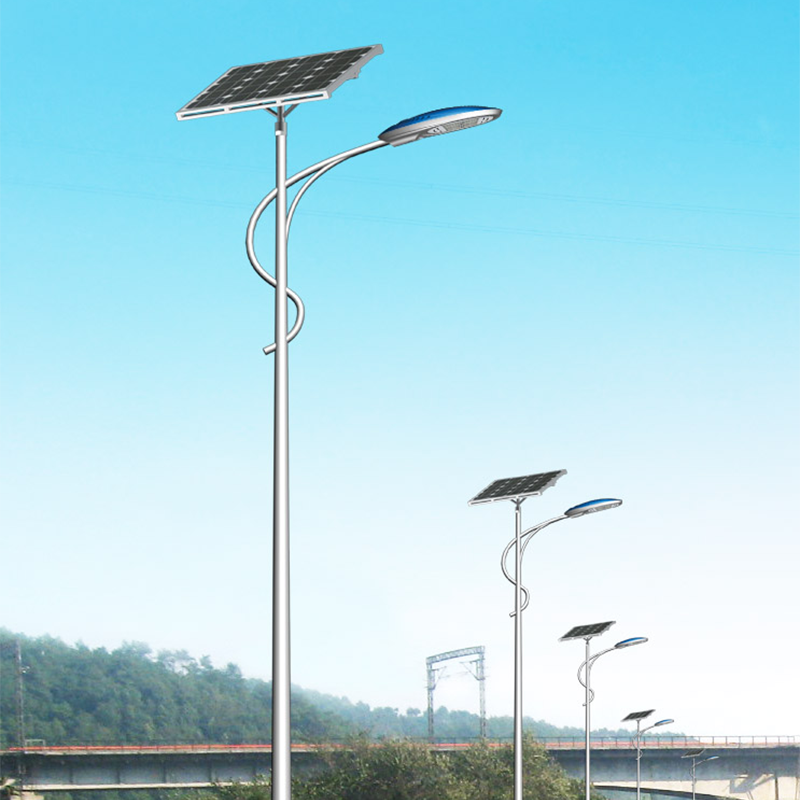

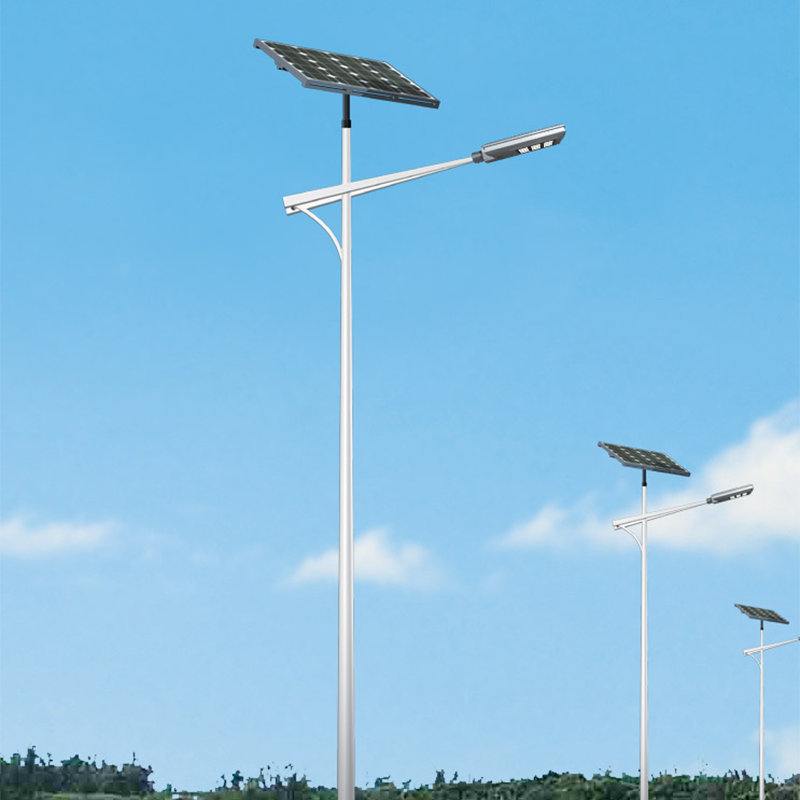

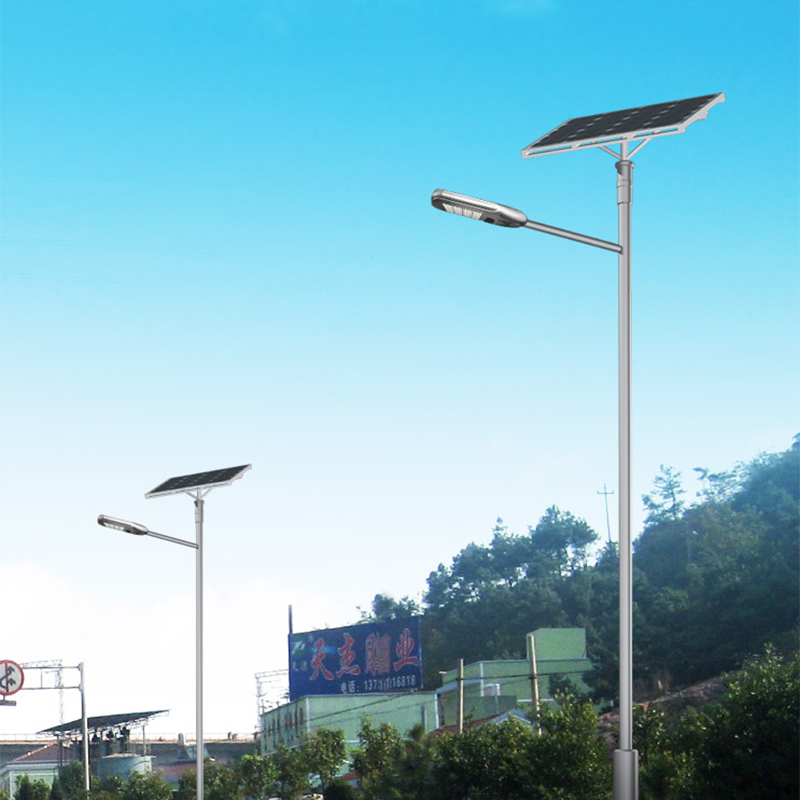

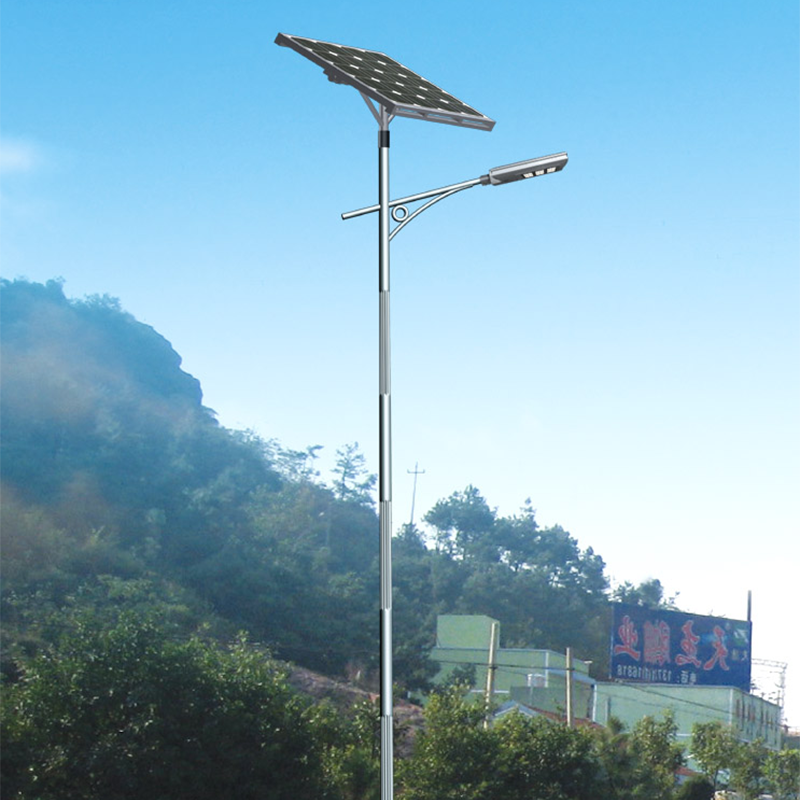

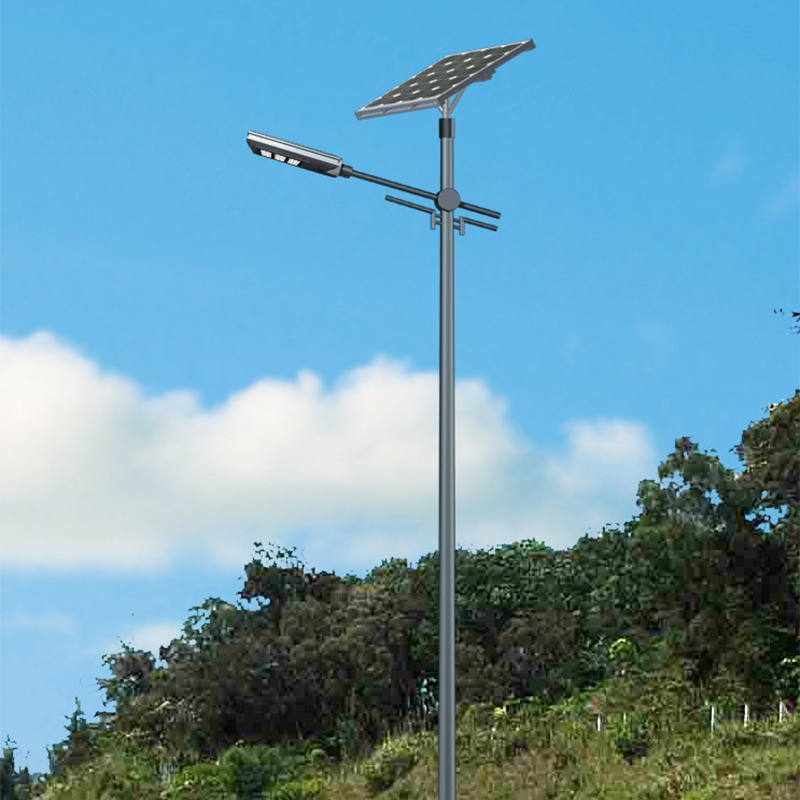

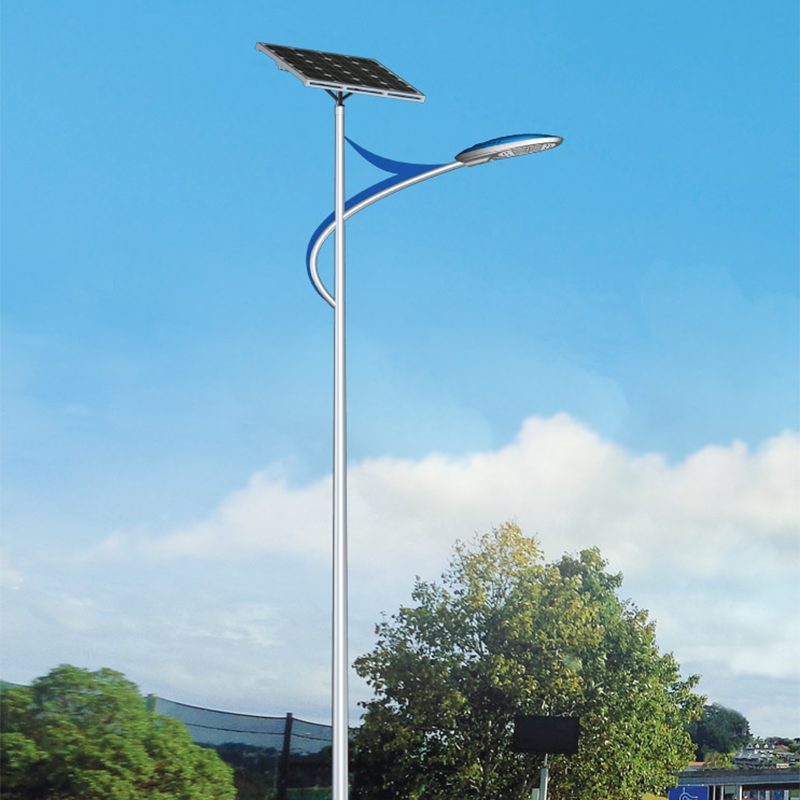

This lighting system series is engineered specifically for large-scale industrial parks, urban arterial roads, and high-altitude wilderness transportation environments, emphasizing reliability and light output efficiency in extreme conditions. The series utilizes various cantilever connection schemes, such as reinforced sleeve connections or biomimetic streamlined cantilever designs, aimed at effectively dispersing high wind loads. The systems integrate high-efficiency polycrystalline photovoltaic modules with unique self-cleaning surface coatings, which significantly reduce maintenance frequency in dusty industrial environments while ensuring long-term stable energy conversion.
Regarding technical performance, the entire series employs an intelligent microprocessor control system that supports automatic adjustments of working hours and brightness parameters based on seasonal changes. Tailored for different geographical conditions, the systems can be configured with high-capacity lithium iron phosphate battery packs combined with advanced constant-current driving schemes, ensuring stable illumination output even after a full week of continuous overcast or rainy weather. The light head modules utilize high-thermal-conductivity die-cast aluminum, effectively solving heat dissipation challenges during prolonged high-power operation and fundamentally preventing light degradation.
In terms of engineering deployment and adaptability, the system emphasizes modular, rapid installation. All connection parts use standardized anti-corrosion bolt structures, supporting ground-level assembly followed by single-step lifting, which greatly reduces on-site construction complexity in difficult sections. The pole surfaces are treated with aviation-grade hot-dip galvanizing and electrostatic spraying processes, providing extreme wear and weather resistance to ensure a service life of over 10 years under various harsh climatic conditions, making this a high-value lighting configuration for modern urban infrastructure projects.
|
Brand
|
Jinyuan
|
Application
|
Road
|
|
Voltage
|
3.2V/12V/24V
|
Light Source
|
LED
|
|
Operating Temperature
|
-35℃~65℃
|
Lamp Body Material
|
Aluminum Alloy
|
|
Continuous Lighting Time
|
5-12 Hours
|
Lamp Luminous Efficacy
|
140Lm/W
|
|
Color Temperature
|
3000K-6000K
|
Color Rendering Index (Ra)
|
70
|
|
Switch Type
|
Light Control + Time Control
|
Warranty Period
|
3 Years
|
|
Pole Material
|
Q235, Q355, SS400, GR65, etc.
|
Pole Height
|
6m-10m
|
| PRODUCTION EQUIPMENT | |
| HOW WILL YOU BE GUARANTEED BY PREMIUM QUALITY AT COMPETITIVE PRICES? | |
| Material option: Q235B/Q345B/S275JR/S355JR/Q460/A36/A572/GR56/GR50 and etc.Extensive stock of materials ensures you never face delays, allowing for rapid production and guarantee a high-quality foundation for your projects. |
![]() |
| With our precise, consistent CNC bending,you can count on enhanced structural integrity and fewer post-production adjustments | ![]() |
| In-house manufacturing with full supply chain oversight, ensuring quality from components to finished products. Every unit undergoes three critical factory tests: light source aging/durability, structural waterproofing, and comprehensive performance verification. Dual-layer quality control minimizes post-sales issues. | ![]() |
| Integrated design combining the solar panel and the light unit (with built-in energy storage); powered entirely by solar energy—no underground wiring required. Easy to install and ready to use right out of the box with no complex setup. Features built-in smart light-sensing controls: simply disable "transport mode" after installation, and the light operates automatically—turning on at dusk and charging at dawn. | ![]() |
| Fully automated production lines with machine-based inspections and rigorous quality checks at every stage—from solar cell encapsulation to final product verification. Standardized processes ensure superior solar panel sealing and weather resistance. Holds multiple authoritative certifications (ISO, CE, CQC), ensuring complete control over end-to-end quality. | ![]() |
| Uses premium Grade-A silicon wafers for high energy conversion efficiency. The stable crystal structure offers excellent weather and impact resistance, while the material resists aging and degradation. Designed for stable, long-term outdoor operation with a lifespan far exceeding that of standard silicon wafers. | ![]() |
|
YOUR SATISFACTION, OUR SERVICE:
|
|
|
From consultation to project completion, we’re dedicated to providing you with seamless, personalized service that ensures your project’s success and your complete satisfaction.
|
|
![]() |
![]() |
|
CAD Design
|
3D Product Simulation Design
|
![]() |
![]() |
|
3D Scene Simulation Design
|
Specification & Color Customization
|
![]() |
![]() |
|
Mechanical Calculation Wind&Foundation
|
Oversea Onsite Installation Guidance
|
Daytime smart charging Automatic light at night
Our company is a China Industrial-Grade Multi-Functional Solar Light Suppliers and Industrial-Grade Multi-Functional Solar Light Factory.Yangzhou Jinyuan Lamps Co., Ltd, which is affiliated with Jinshang Electric Group, is one of the professional provincial large-sized production, design, and engineering companies in the industry of road illumination in China. Since established from 2002, our products, which focus on street light poles, led street light, solar street light, light fixtures, etc., are highly appreciated by customers in domestic and overseas.
