Xiao Jin Dou Series Compact High-Efficiency Outdoor Light

The Xiao Jin Dou series lighting system is engineered specifically for medium-to-low traffic roads and community illumination requirements, achieving an optimal balance between structural compactness and thermal performance through its lightweight body. This series optimizes energy utilization for light-duty application scenarios, making it the ideal upgrade for urban slip roads, alleyways, and diverse public spaces.

Technical Specifications and Configuration
Voltage and Compatibility: Supports a wide input voltage range of AC85V to 260V at 50Hz to 60Hz, possessing robust resistance to power grid interference.

Precision Power Output: This series offers two high-efficiency configurations (20W and 30W) with initial luminous fluxes of 2200Lm and 3300Lm, respectively, precisely matching the requirements for light-duty roadway illumination.

Structure and Thermal Management: The housing utilizes a high-performance aluminum alloy finned heat sink, with dimensions optimized to 518mm x 213mm x 72mm, compatible with standard 48mm diameter pole mounts.

Environmental Protection Metrics: The complete unit achieves an IP65 ingress protection rating, capable of withstanding operating temperatures from -40°C to +50°C while maintaining a stable service life of up to 50,000 hours in harsh weather conditions.

Engineering Value and Functional Features
Light Distribution Design: Features a professionally optimized bat-wing distribution curve, ensuring road surface uniformity ratios exceeding 0.7. This design completely eliminates glare and uneven light spots often associated with conventional luminaires, enhancing pedestrian visibility and safety.

Energy Efficiency and Environmental Impact: Integrates advanced high-efficiency chip packaging technology, achieving energy savings of over 60% compared to traditional lighting equipment. The manufacturing process adheres to strict green standards, ensuring zero mercury and zero UV radiation, thereby protecting the local ecosystem and public vision health.

Color Rendering and Visual Experience: With a Color Rendering Index (Ra) greater than 75, the series accurately restores environmental colors and signage, significantly improving the nightscape visual quality of public spaces.

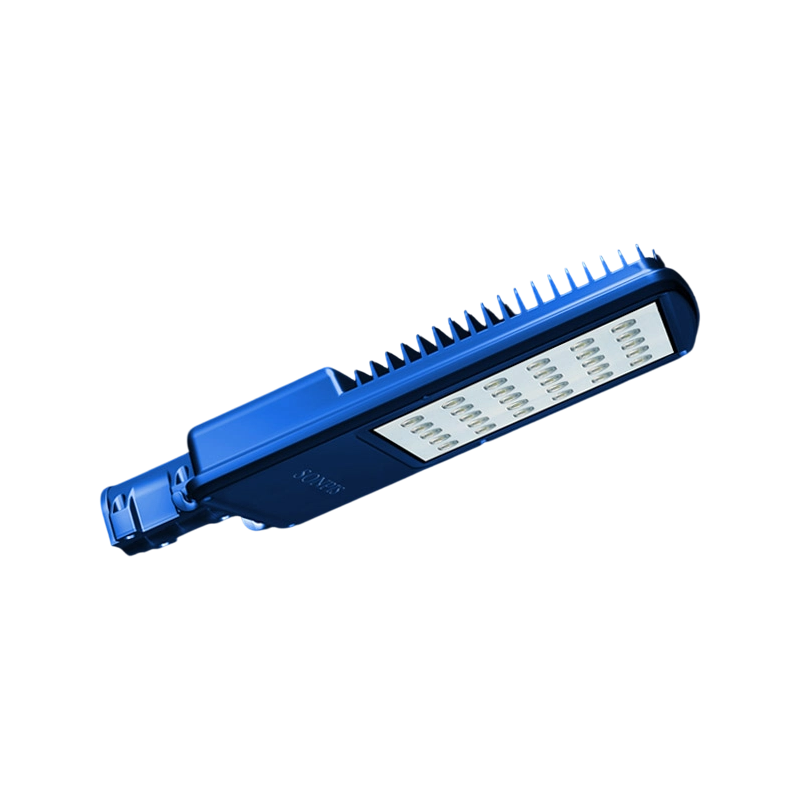

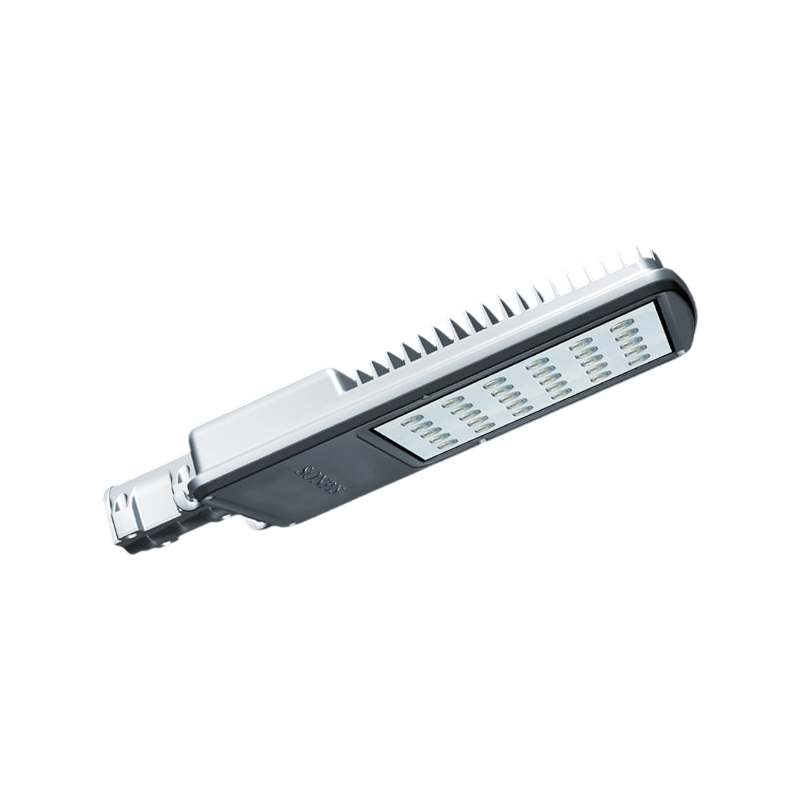

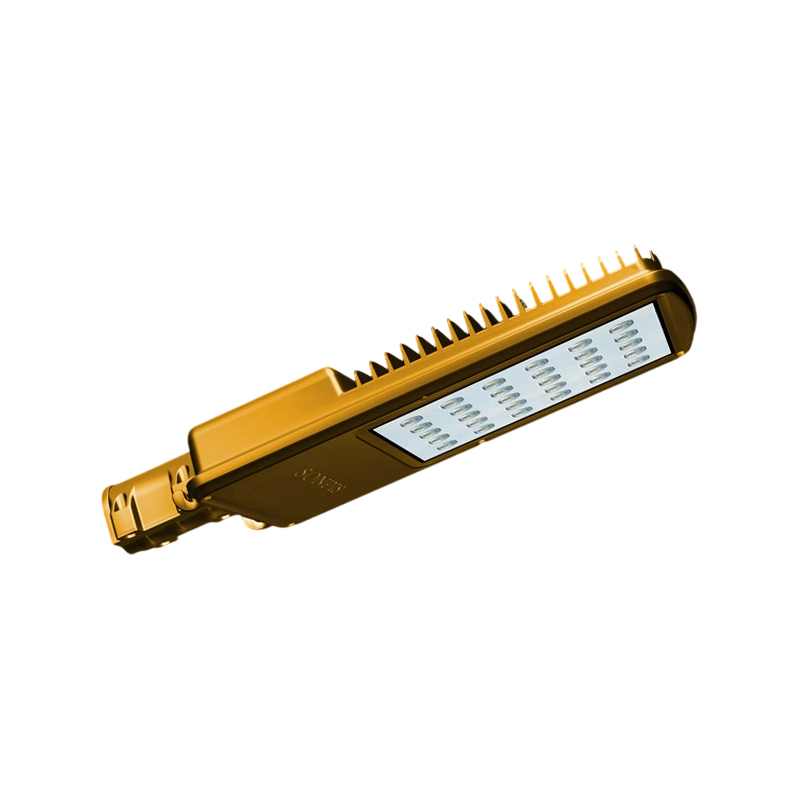

Flexible Aesthetic Customization: Available in a variety of finishes, including gray, white, black, blue, and orange, allowing for seamless integration and aesthetic alignment with diverse urban architectural styles.
