Wholesale Modular Anti-Glare High-Lumen LED Street Luminaire

Home / Product / LED Street Lighting / LED Luminaires / Modular Anti-Glare High-Lumen LED Street Luminaire

Modular Anti-Glare High-Lumen LED Street Luminaire

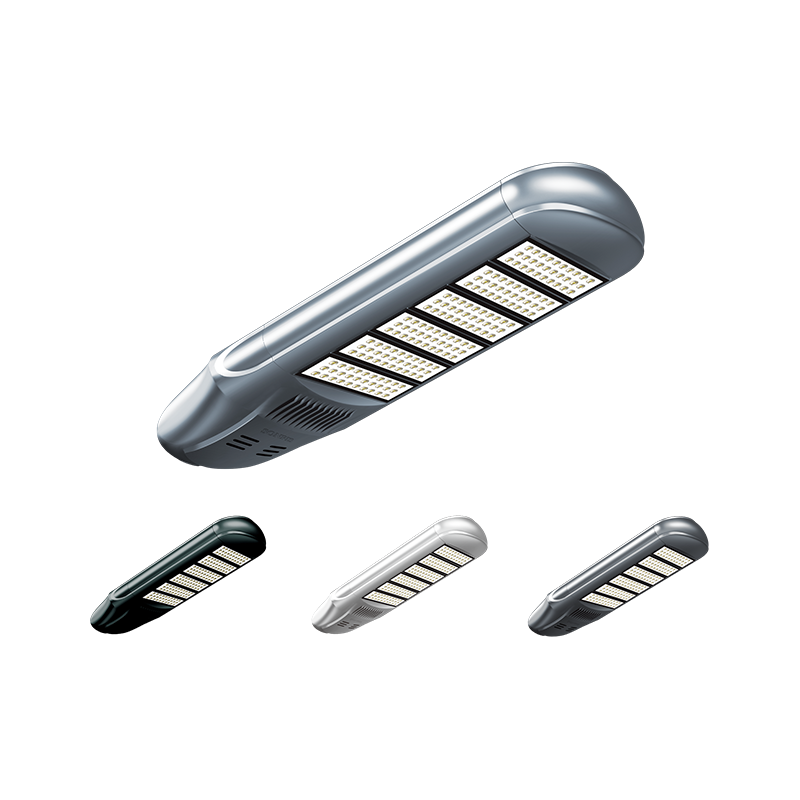

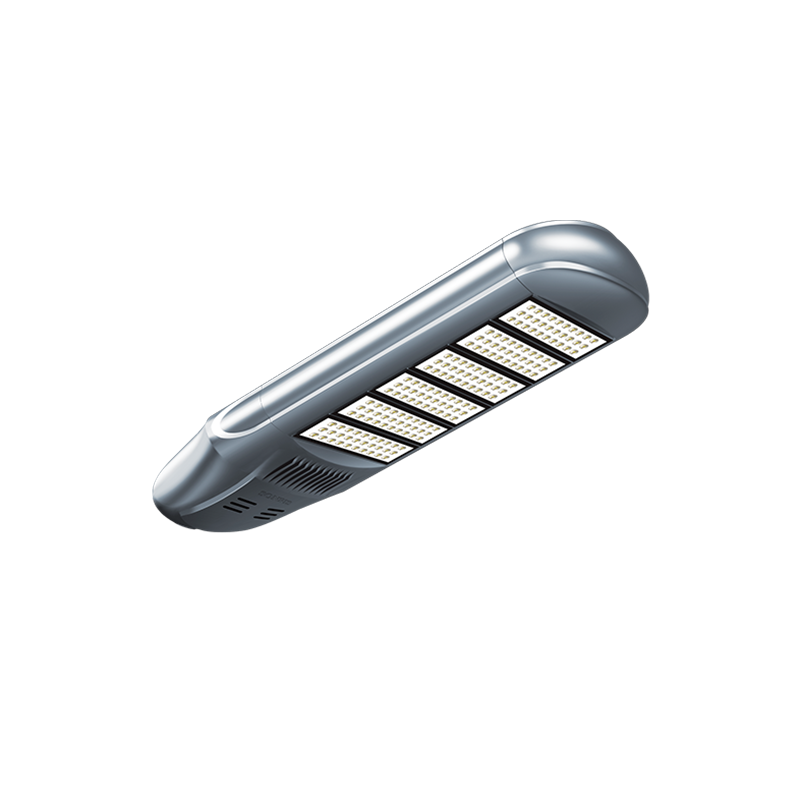

The Modular Anti-Glare High-Lumen LED Street Luminaire constructed from high-grade die-cast aluminum (ADC12), the housing features a streamlined, curved profile that significantly reduces wind resistance and prevents debris accumulation. Its modular optical engine ensures precise light distribution while providing a structural foundation for superior heat dissipation.
The luminaire is engineered with an independent segmented cooling system. This vertical convection design allows heat to dissipate rapidly from the LED chips, maintaining a low junction temperature and ensuring a stable lifespan of over 100,000 hours. Equipped with professional-grade PC lenses, it delivers high-uniformity Type II/Type III light distributions, effectively eliminating glare and "zebra effects" to enhance driver safety.
The IP66-rated waterproof housing and IK10 impact resistance ensure reliable performance in extreme weather conditions, from coastal humidity to intense heat. An integrated driver compartment allows for easy access, facilitating rapid on-site maintenance and reducing long-term labor costs.

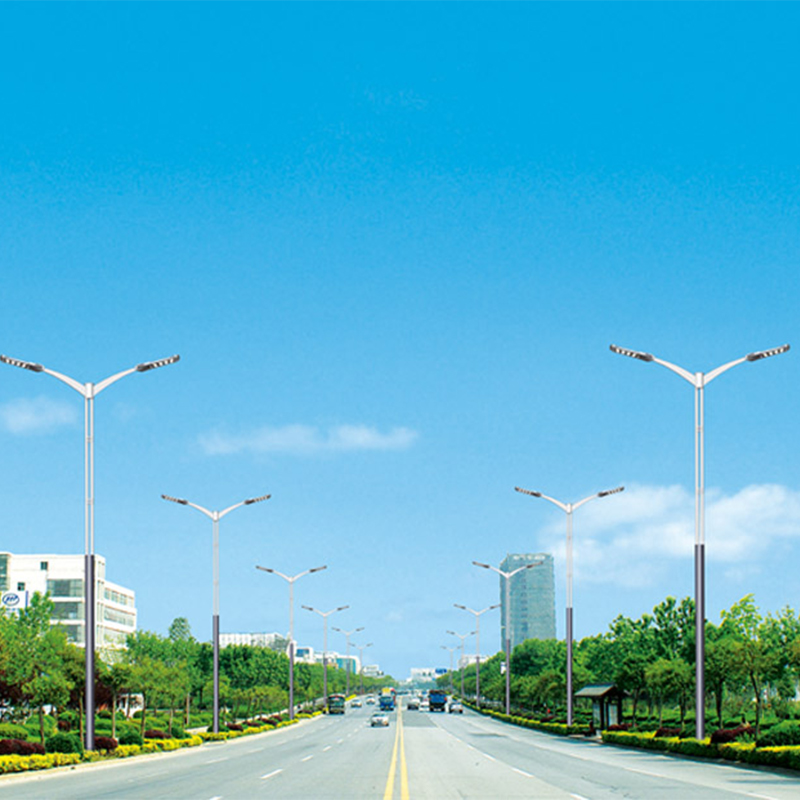

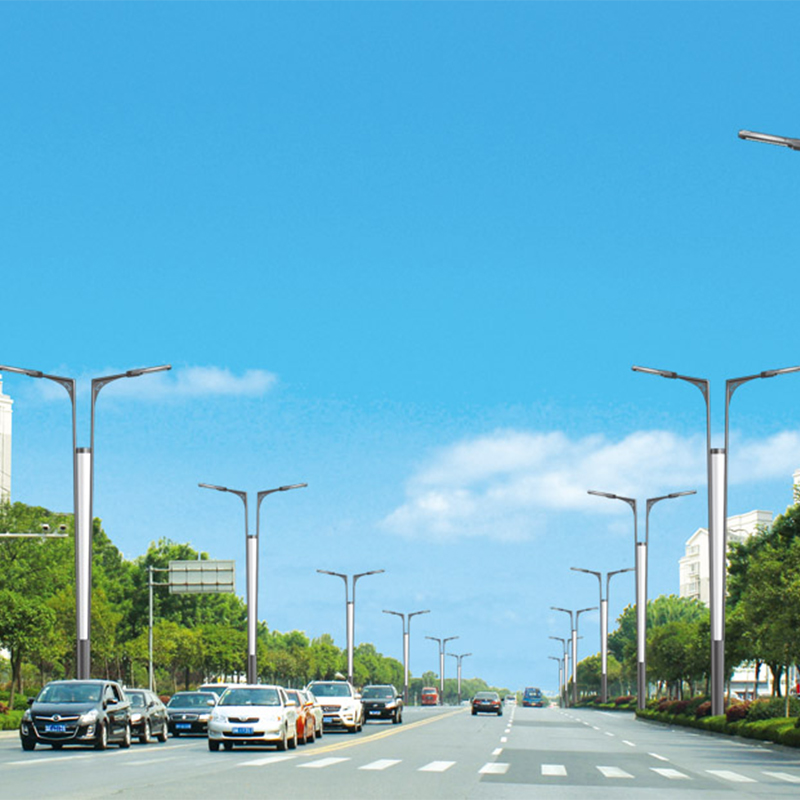

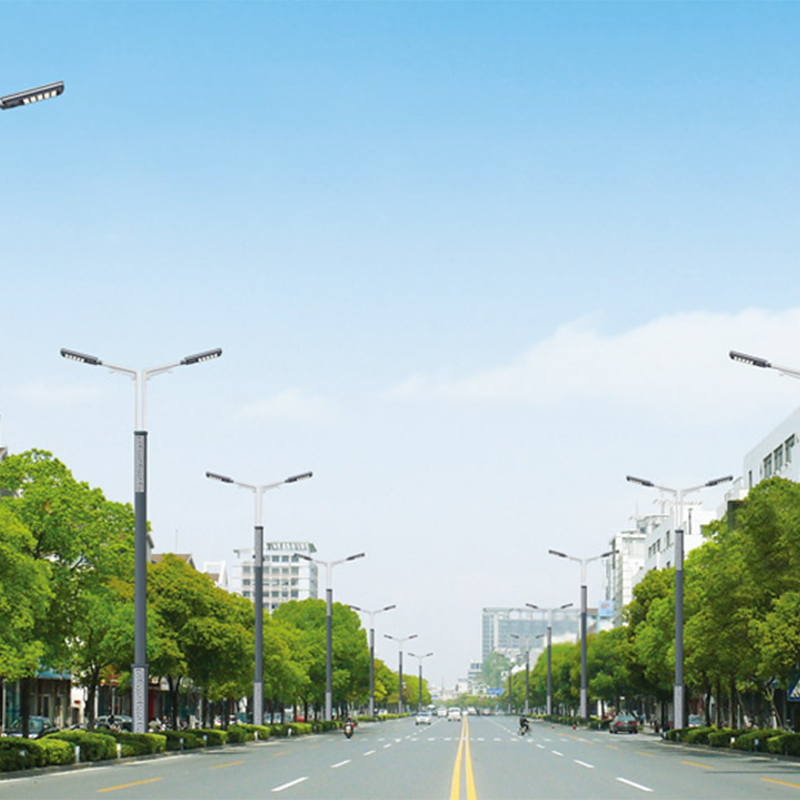

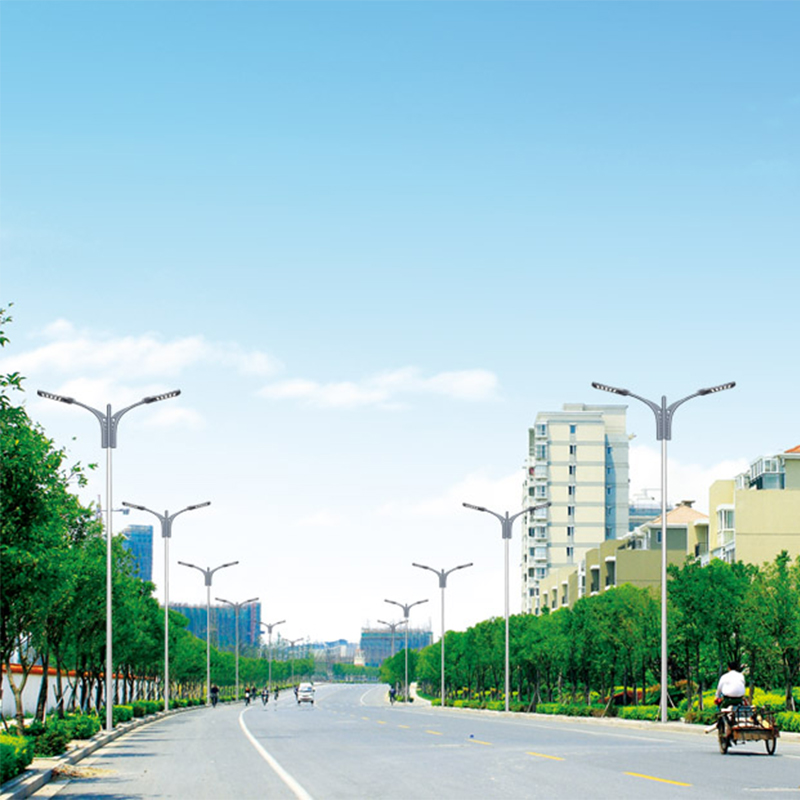

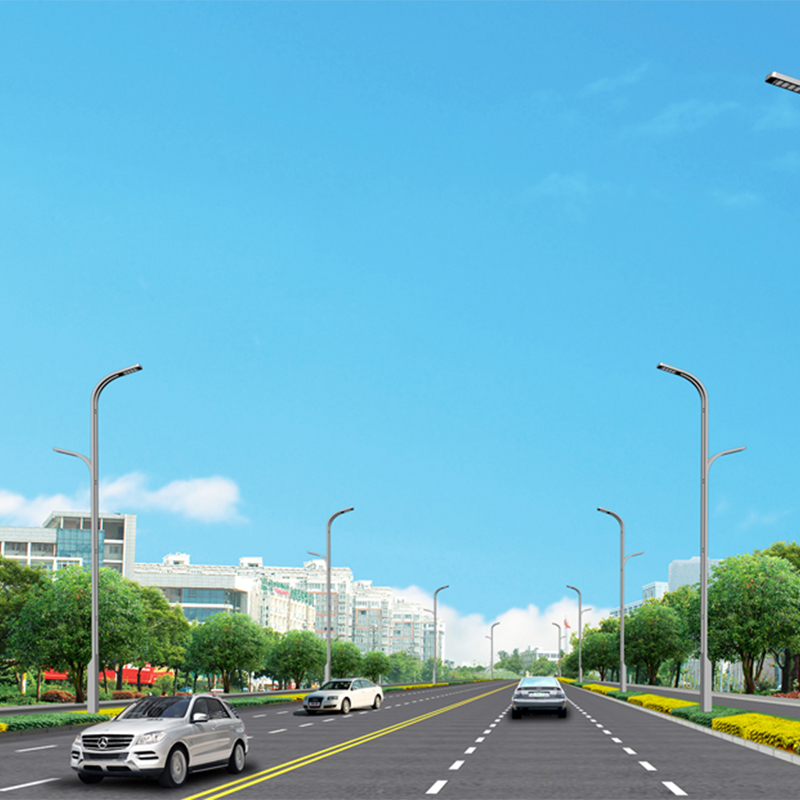

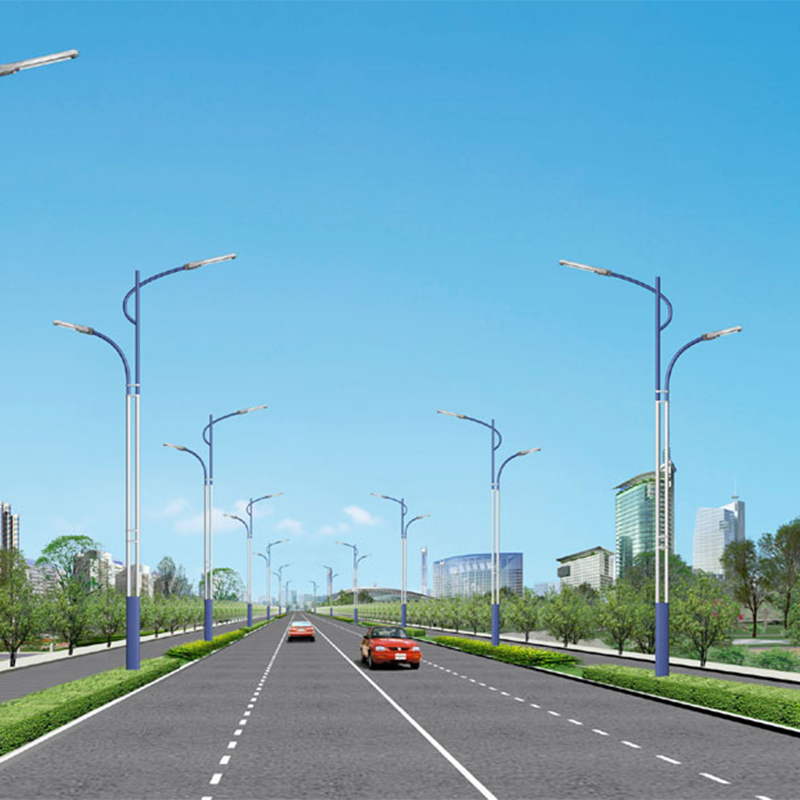

This versatile lighting solution is ideal for high-speed expressways, urban main roads, industrial logistics parks, and smart city infrastructure projects. It provides a sustainable, high-output lighting environment that meets the demands of modern municipal and commercial engineering.

PREV：Modular Compact LED Luminaire NEXT：Aerodynamic High-Lumen Modular LED Street Light

Brand	Jinyuan	Application	Road
Input Voltage	AC85-265V	Light Source	LED
Operating Temperature	-35~65℃	Lamp Material	Aluminum Alloy
Protection Rating	IP65	Luminous Efficacy	140Lm/w
Color Temperature	3000K-6000K	Color Rendering Index (Ra)	70
Dimming Support	DC 0-10V / DALI	Warranty Period	5 Years
