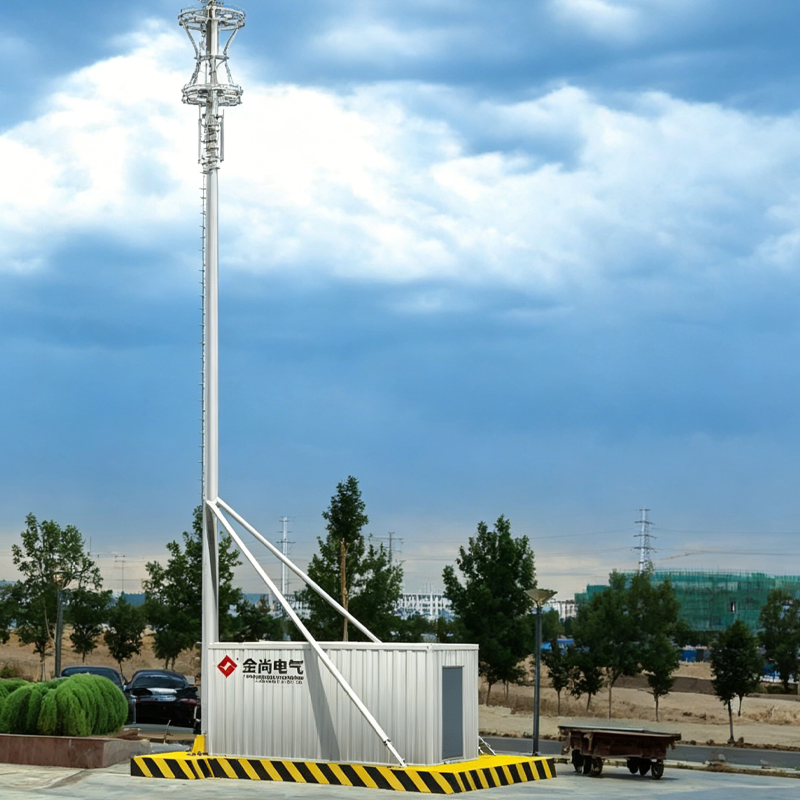

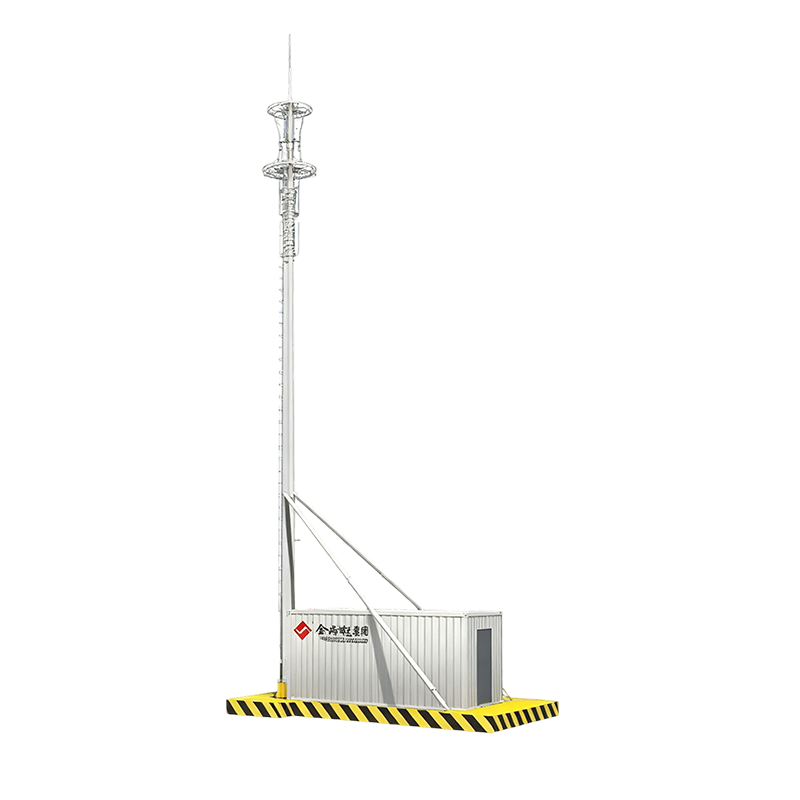

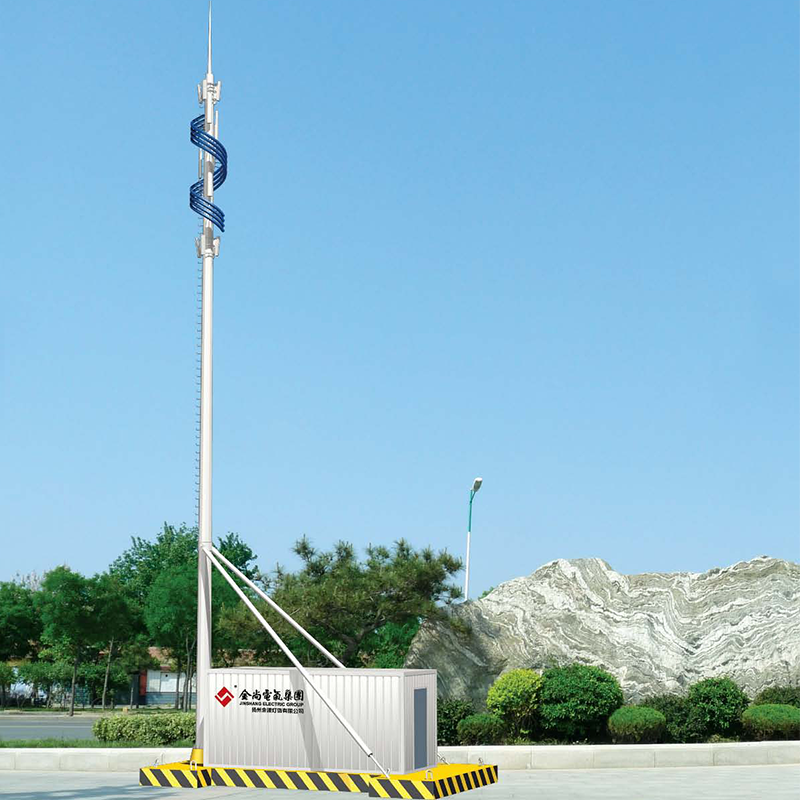

Portable Mobile Communication Base Station

The Portable Mobile Communication Base Station Series is specifically engineered to address challenges inherent in traditional base station construction, such as lengthy excavation times, high costs, and difficulties in urban deployment. The system is composed of four primary components: the tower body, the equipment room frame, the steel-concrete counterweights, and the lifting structure system. Its key technical advantage lies in the ability to be deployed rapidly on various terrains, including concrete, hard soil, soft soil, and grassy areas, without the need for traditional foundation excavation.

Regarding performance, the product demonstrates exceptional engineering efficiency, with the capability to complete deployment and become operational within as little as 4 hours. The lifting system is available in hydraulic or mechanical configurations and features a PLC programmable automatic control system for stepless speed regulation, supporting varying heights from 15 meters up to 35 meters. The structural design employs high-strength bolts to secure the tower to the base frame, ensuring stability in wind speeds averaging 35m/s while maintaining a clean and aesthetically pleasing appearance.

This series excels in applications such as emergency communications, site selection testing for base stations, and traffic diversion in high-demand areas. Its superior mobility allows for transportation and relocation via standard semi-trailers, and the reusable counterweights significantly reduce both construction and operational expenses.
